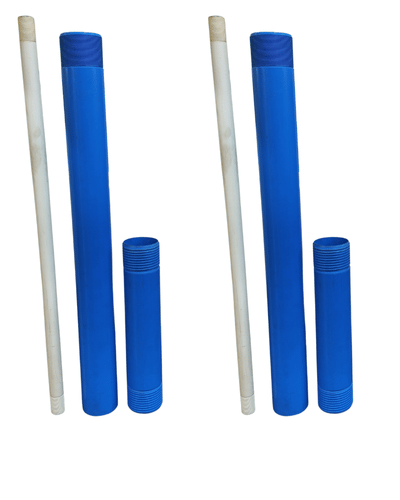

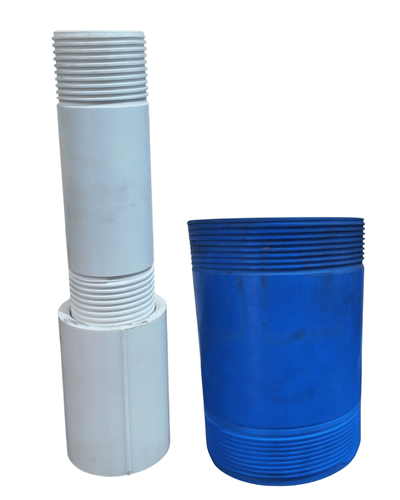

Column Pipes & Couplers
Column Pipes & Couplers

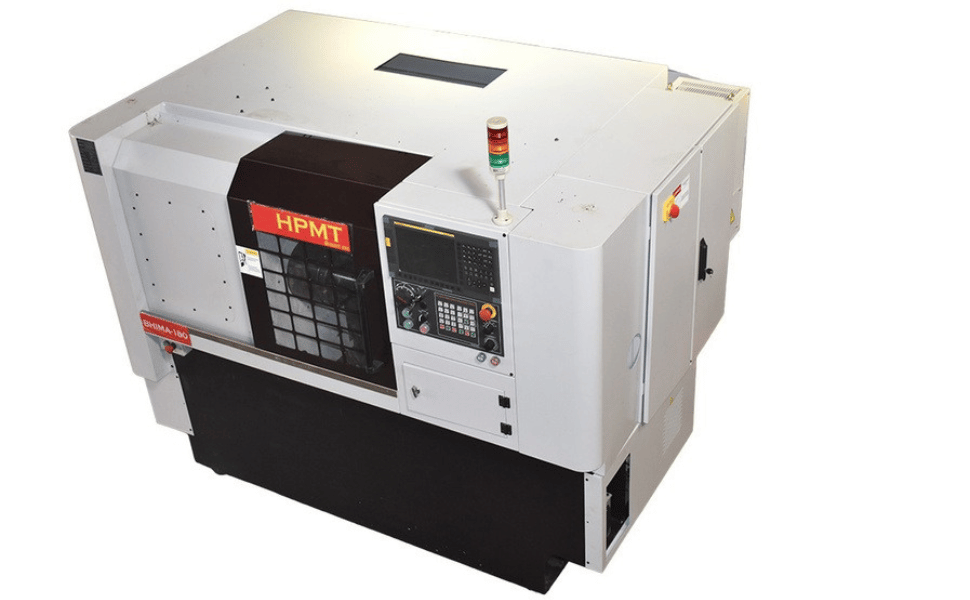

Our ARJUN Series CNC Threading Machines are built for high-speed, precision threading of PVC Column Pipes and Couplers. Designed with hydraulic clamping, turret tooling, and robust spindle systems, these machines deliver exceptional output with minimal downtime.
🔹 ARJUN-68 (1″–2″ for Column Pipe)
Specifications:
- Spindle Throughbore – 68 mm
- Spindle Motor – 7.5 / 5.5 kW
- Axis Travel (X / Z) – 200 / 270 mm
- Spindle Speed – 1000–1200 RPM
- Tooling System – With Turret
- Work Holding Type – Hydraulic Clamping
Machine Output: 60–65 pieces/hour
🔹 ARJUN-91 (1″–3″ for Column Pipe)
Specifications:
- Spindle Throughbore – 92 mm
- Spindle Motor – 7.5 / 5.5 kW
- Axis Travel (X / Z) – 200 / 270 mm
- Spindle Speed – 1000–1200 RPM
- Tooling System – With Turret
- Work Holding Type – Hydraulic Clamping
Machine Output: 60–65 pieces/hour
🔹 ARJUN-117 (1″–4″ for Column Pipe)
Specifications:
- Spindle Throughbore – 117 mm
- Spindle Motor – 7.5 / 5.5 kW
- Axis Travel (X / Z) – 200 / 270 mm
- Spindle Speed – 1000–1200 RPM
- Tooling System – With Turret
- Work Holding Type – Hydraulic Clamping
Machine Output: 60–65 pieces/hour
🔹 ARJUN-140 (1″–6″ for Column Pipe)
Specifications:
- Spindle Throughbore – 155 mm
- Spindle Motor – 7.5 / 5.5 kW
- Axis Travel (X / Z) – 200 / 270 mm
- Spindle Speed – 1000–1200 RPM
- Tooling System – With Turret
- Work Holding Type – Hydraulic Clamping
Machine Output: 60–65 pieces/hour
🔹 INLINE MACHINE
Specifications:
- Spindle Throughbore – 117 mm
- Spindle Motor – 7.5 / 5.5 kW
- Axis Travel (X / Z) – 200 / 270 mm
- Spindle Speed – 1000–1200 RPM
- Tooling System – With Turret
- Work Holding Type – Hydraulic Clamping
Machine Output: 60–65 pieces/hour
